In the field of Electric Power Fittings, every component plays a vital role in ensuring the safety, reliability, and performance of power transmission and distribution networks. Among these components, pre-insulation lugs and sleeves may appear modest in size, but their function is critical to the integrity of any electrical system. These small devices serve as crucial connection points, helping prevent faults, simplify installation, and safeguard infrastructure from environmental and operational stress.
As global power grids modernize to handle increasing energy demands, the importance of quality fittings—especially those that enhance insulation and connectivity—has become a top priority for utility engineers, contractors, and maintenance professionals. This blog explores how pre-insulated lugs and sleeves strengthen the reliability of electrical systems and why they are indispensable in today’s power infrastructure.
Pre-insulation lugs and sleeves are specialized types of cable terminals and connectors that come with a factory-applied layer of insulation. Designed for quick and safe cable termination, they eliminate the need for post-installation insulation or taping, which can be time-consuming and inconsistent.
These components are typically used to connect low- to medium-voltage cables in switchgear, junction boxes, overhead lines, and transformers. Their main advantages lie in the integration of both mechanical conductivity and electrical insulation into one cohesive unit.
Aluminum or Copper Conductive Core: Ensures low resistance and compatibility with conductor material.
PVC or Polyamide Insulation: Offers thermal resistance and environmental protection.
Color-Coding: Helps identify conductor size and type easily during installation.
Electrical insulation is crucial in power systems for several reasons:
Prevents Short Circuits: Insulation minimizes the chance of unintended contact between conductors or with grounded parts.
Enhances Safety: Reduces the risk of electric shock during handling and maintenance.
Improves System Reliability: Protects the electrical connection from dust, moisture, and corrosive substances.
Enables Compact Installations: With pre-insulation, fittings can be placed closer together without risking faults.
By incorporating insulation directly into the fitting, pre-insulated lugs and sleeves significantly lower the potential for human error during the assembly process and improve long-term durability in harsh environments.
Pre-insulated lugs and sleeves are widely used across many sectors of the power industry:
Overhead and Underground Distribution Systems
Industrial Panel Assemblies
Residential Wiring
Renewable Energy Systems (e.g., solar, wind)
Marine and Offshore Installations
They are especially valuable in areas where connections are subject to mechanical vibration, moisture, temperature extremes, or corrosive atmospheres.
While bare lugs and sleeves are still common, their use typically requires additional steps such as heat shrink tubing, taping, or liquid insulation. This increases installation time and introduces inconsistencies depending on the technician's skill.
By comparison, pre-insulated fittings offer several key benefits:
The insulation is already in place, reducing preparation time. Most types can be crimped using standard tools, and visual indicators (such as color bands or printed sizes) help reduce errors during assembly.
Manual insulation methods often suffer from uneven coverage or air gaps. Pre-insulated terminals ensure consistent protection and minimize the likelihood of insulation breakdown over time.
The insulation is bonded to the connector, improving pull-out strength and reducing movement of conductors under vibration or strain.
Pre-insulated fittings create neater installations with uniform appearance and performance, which is particularly beneficial in critical infrastructure where quality inspections are frequent.
Depending on the application, there are multiple types of pre-insulated fittings available:
Pin Lugs – Used for switchgear terminations.
Fork (Spade) Lugs – Allow easy installation without removing screws entirely.

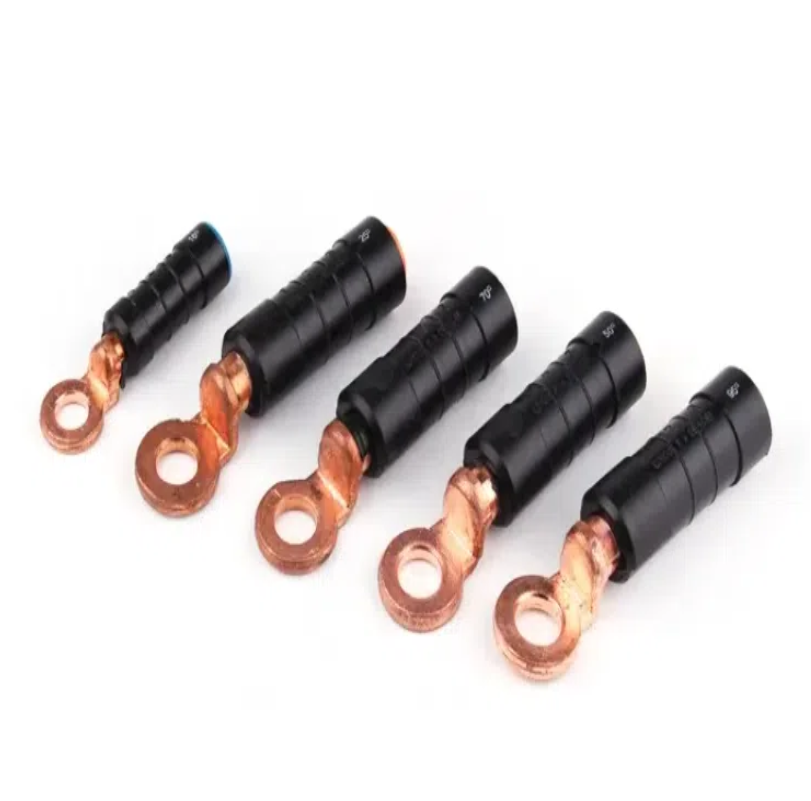

Ring Lugs – Provide a secure bolted connection.
Flat Blade Lugs – Used in busbar terminations or compact panels.
Straight Sleeves – For joining two conductors end-to-end.
Reducer Sleeves – For connecting conductors of different sizes.
Branch Sleeves – Enable tap-offs or branching connections.
Each variant is available in a range of sizes, voltage ratings, and insulation materials, allowing customization based on application requirements.
To ensure safe operation and interoperability, pre-insulated lugs and sleeves must comply with relevant standards, including:
IEC 61238-1: For compression and mechanical connectors.
IEC 60998-2-1: For connecting devices with screw-type clamping units.
UL 486: Covers wire connectors and soldering lugs.
ISO 9001 / 14001: Manufacturer quality and environmental management.
Using certified fittings not only supports regulatory compliance but also ensures long-term performance and peace of mind.
System reliability is the cornerstone of any electrical distribution network, and the selection of appropriate fittings plays a pivotal role in ensuring this reliability. Pre-insulated lugs and sleeves are designed not only to connect conductors securely but also to enhance the overall performance and durability of the electrical system. Here’s how they contribute to building robust and dependable networks:
Minimize Contact Resistance: Pre-insulated fittings are typically made from high-conductivity materials such as copper or aluminum. These materials facilitate efficient current flow by minimizing electrical resistance at connection points. Lower contact resistance reduces energy loss, improves system efficiency, and helps maintain consistent voltage levels.
Reduce Hotspots: In electrical connections, poor contact or inadequate insulation can cause localized heating or “hotspots,” which accelerate cable insulation degradation and may lead to premature equipment failure. Pre-insulated lugs and sleeves provide uniform pressure and excellent insulation coverage, reducing the risk of hotspots and ensuring stable operation over time.
Prevent Moisture Ingress: Exposure to moisture is a common cause of corrosion and insulation breakdown, especially in outdoor or humid environments. The integrated insulation layer on these fittings acts as a robust barrier against water, dust, and other contaminants, preserving the integrity of the connection and preventing faults related to moisture.
Withstand Environmental Stresses: High-quality pre-insulated fittings are manufactured using UV-resistant, flame-retardant, and chemically stable materials. This makes them capable of enduring harsh environmental conditions such as extreme temperatures, solar radiation, and exposure to chemicals. Their durability ensures long-term performance without deterioration that could compromise system safety.
Over time, these advantages translate into fewer unplanned outages, reduced maintenance needs, and enhanced safety for both field technicians and end-users. By investing in reliable pre-insulated lugs and sleeves, utilities and industrial operators can significantly improve the resilience and lifespan of their electrical distribution networks, leading to cost savings and greater operational confidence.
As with other components in power infrastructure, pre-insulated lugs and sleeves are undergoing continual innovation. Some emerging trends include:
Tool-less Push-In Connectors: For quick, tool-free installation in residential or commercial wiring.
Smart Indicators: Heat-sensitive markers that show if overheating has occurred at the connection point.
Eco-Friendly Insulation Materials: Made from recyclable plastics or halogen-free compounds to reduce environmental impact.
Universal Fit Designs: Accommodate a wider range of conductor sizes, reducing inventory complexity.
These innovations are aligned with global shifts toward smart grids, sustainability, and reduced total cost of ownership.
In the complex architecture of electrical distribution systems, it's often the smallest components that make the biggest difference. Pre-insulated lugs and sleeves may not dominate project budgets, but they do provide essential functionality that ensures operational continuity, safety, and performance. By streamlining installation, minimizing faults, and improving long-term durability, they represent a smart investment for utilities, contractors, and engineers alike.
